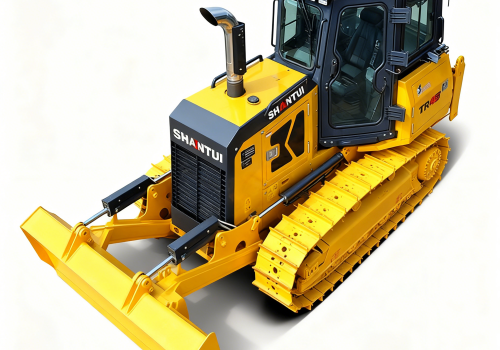

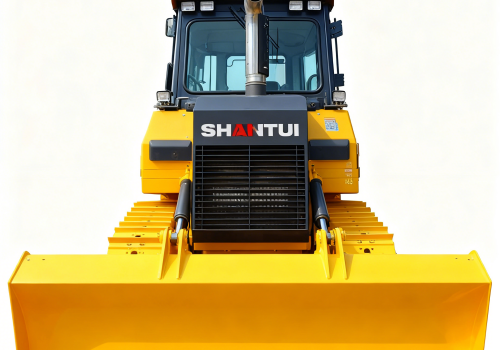

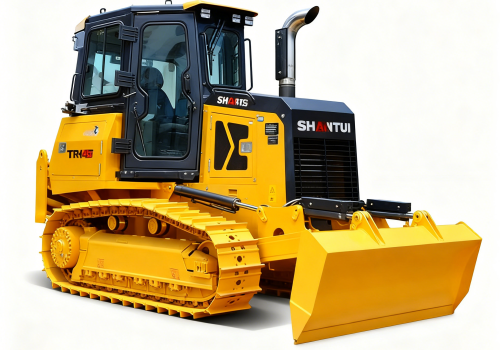

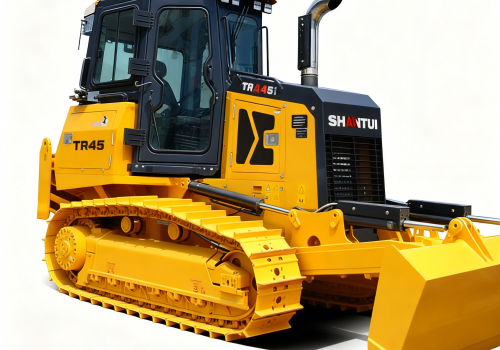

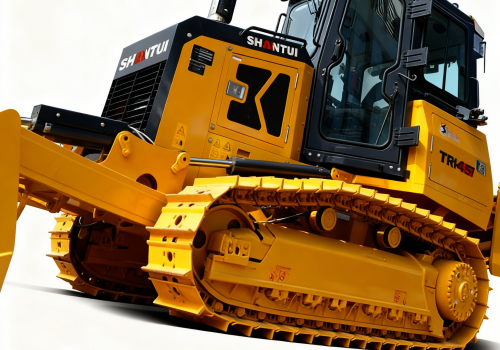

The TRH10-G hydrostatic tractor offers powerful performance, excellent maneuverability, and a comfortable operating experience. Designed for high efficiency and reliable operation, it is ideally suited for clearing and leveling bulk cargo in port holds, as well as handling loose materials in power plants and terminals.
| Category | Parameter | Specification |
|---|---|---|
| Model | TRH10-G | |
| Performance | Operating Weight (kg) | 10,500 |
| Ground Pressure (kPa) | 41.4 | |
| Engine | Model | Cummins QSF3.8 |
| Rated Power/Speed (kW/rpm) | 90 / 2200 | |
| Dimensions | Overall Dimensions (L×W×H, mm) | 5,100 × 2,680 × 2,975 |
| Travel Performance | Forward Speed (km/h) | 0-9 |
| Reverse Speed (km/h) | 0-9 | |
| Undercarriage | Track Gauge (mm) | 1,690 |
| Track Shoe Width (mm) | 460 | |
| Ground Contact Length (mm) | 2,320 | |
| Tank Capacity | Fuel Tank (L) | 186 |
| Hydraulic Oil Tank (L) | 54 | |
| Working Device | Blade Type | Spade Blade |
| Max. Blade Lift Height (mm) | 1,600 | |
| Max. Cutting Depth (mm) | 680 |
