| Parameter | Value | Unit |
|---|---|---|
| Operating Weight | 7,650 | kg |
| Bucket Capacity | 0.18 - 0.4 (Standard: 0.32) | m³ |
| Rated Power/Speed | 36.8 / 2200 | kW/rpm |
Contact Us:xuefei2421@gmail.com
Expert Evaluation Summary

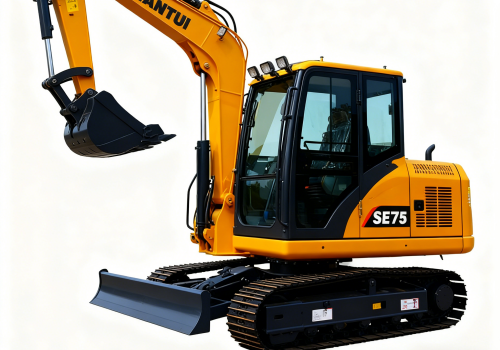

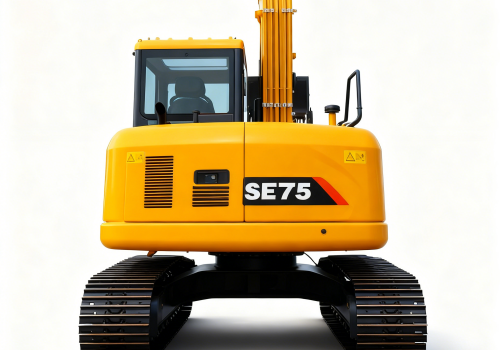

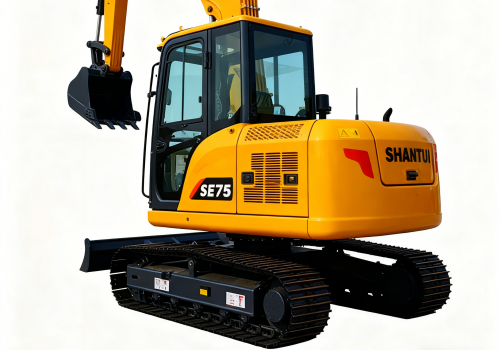

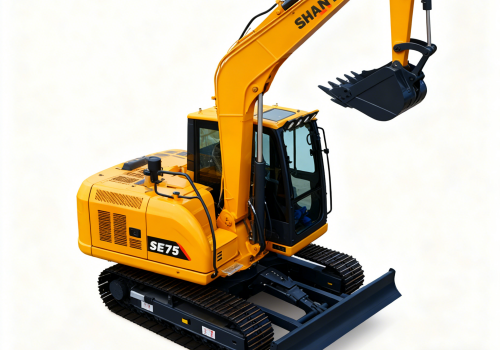

The SE75 hydraulic excavator represents a new generation of small excavators from Shantui, featuring a completely new exterior design and industry-leading load-sensing hydraulic system. It delivers strong overall performance and smooth, responsive operation.
Performance Parameters
| Category | Parameter | Value | Unit |
|---|---|---|---|
| Weights & Power | Operating Weight | 7,650 | kg |
| Rated Power/Speed | 36.8 / 2200 | kW/rpm | |
| Bucket Capacity (SAE) | 0.32 | m³ | |
| Engine Model | Weichai WP3.2T | - | |
| Emission Standard | China IV (Stage IV) | - | |
| Digging Performance | Bucket Digging Force | 66 | kN |
| Arm Digging Force | 38 | kN | |
| Swing Speed | 10.5 | r/min | |
| Max. Digging Depth | 3,990 | mm | |
| Max. Digging Radius | 6,375 | mm | |
| Travel System | Travel Speed (Low/High) | 2.5 / 4.6 | km/h |
| Gradeability | 70% (35°) | - | |
| Ground Pressure | 34 | kPa | |
| Dimensions | Total Length | 6,240 | mm |
| Total Width | 2,260 | mm | |
| Total Height (to cab top) | 2,680 | mm | |
| Counterweight Ground Clearance | 825 | mm | |
| Min. Ground Clearance | 385 | mm | |
| Wheel Base | 2,195 | mm | |
| Track Gauge | 1,800 | mm | |
| Track Width | 2,250 | mm | |
| Working Ranges | Max. Digging Height | 7,100 | mm |
| Max. Dumping Height | 5,105 | mm |
