| Parameter | Value | Unit |
|---|---|---|
| Operating Weight | 12,200 | kg |
| Bucket Capacity | 0.55 | m³ |
| Rated Power/Speed | 92 / 2200 | kW/rpm |
Contact Us:xuefei2421@gmail.com
Expert Evaluation Summary

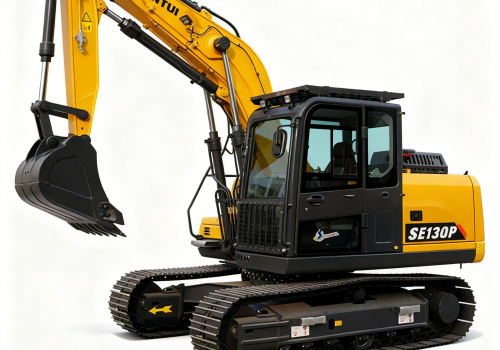

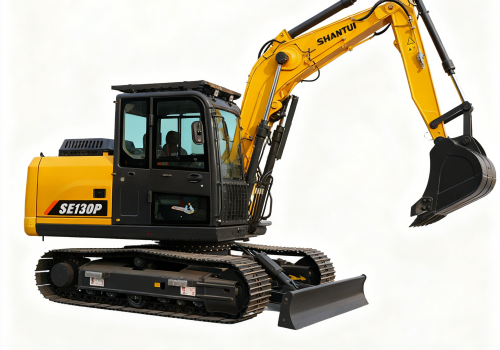

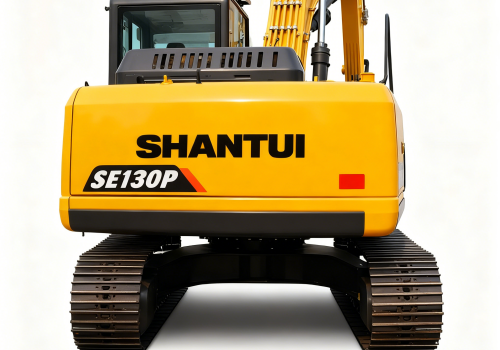

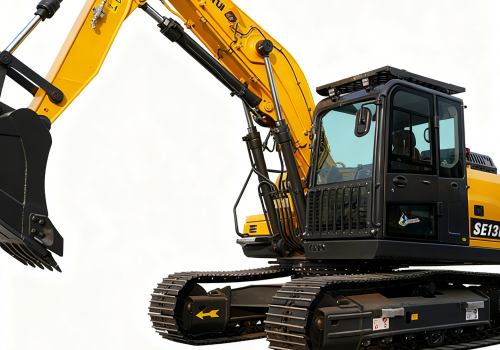

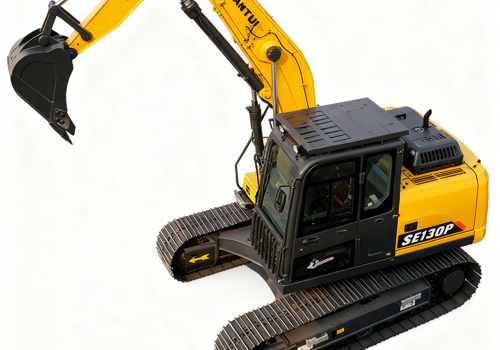

The SE130P compact excavator delivers outstanding fuel efficiency, excellent handling, and powerful performance. Its versatile design makes it perfectly suited for municipal landscaping, agricultural applications, rural construction projects, and highway bridge construction.
Performance Parameters
| Category | Parameter | Value | Unit |
|---|---|---|---|
| Weights & Power | Operating Weight | 12,200 | kg |
| Rated Power/Speed | 92 / 2200 | kW/rpm | |
| Engine Model | WP4.1 | - | |
| Emission Standard | China IV (Stage IV) | - | |
| Displacement | 4.088 | L | |
| Hydraulics & Performance | Bucket Capacity | 0.55 | m³ |
| Rated Working Flow | 360 | L/min | |
| Swing Speed | 10 | r/min | |
| Travel Speed (Low/High) | 3.5 / 5.6 | km/h | |
| Gradeability | 70% | - | |
| Ground Pressure | 37.5 | kPa | |
| Dimensions | Total Length | 5,965 | mm |
| Total Width | 2,490 | mm | |
| Total Height (to cab top) | 2,610 | mm | |
| Min. Ground Clearance | 380 | mm | |
| Wheel Base | 2,700 | mm | |
| Track Gauge | 1,990 | mm | |
| Track Width | 2,490 | mm | |
| Working Ranges | Max. Digging Height | 7,790 | mm |
| Max. Dumping Height | 5,300 | mm | |
| Max. Digging Depth | 3,755 | mm | |
| Max. Digging Radius | 6,980 | mm |
