Road Rollers

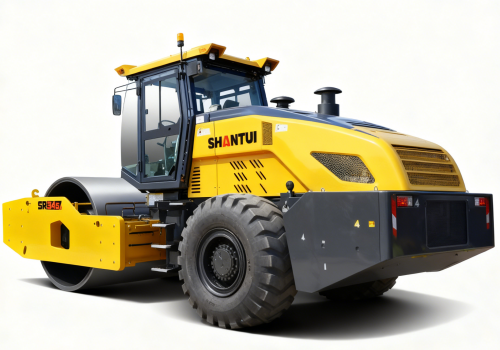

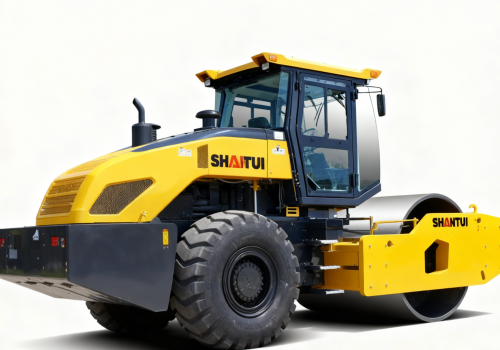

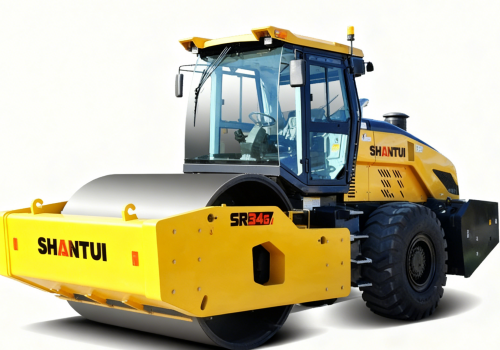

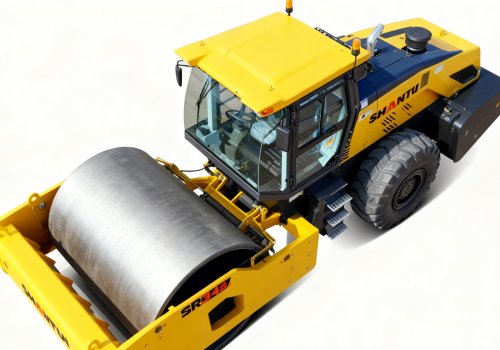

SR34-G Single Drum Roller

ParameterSpecification
Operating Weight34,000 kg
Engine Power276 kW / 2100 rpm, China IV Emission
Compaction Width2400 mm


Contact Us:xuefei2421@gmail.com

Expert Evaluation Summary:
The Shantui SR34-G is a newly developed, fully new-generation large-tonnage fully hydraulic double-drive single-drum vibratory compactor. It offers higher working efficiency, better economy, enhanced comfort, more convenient maintenance, smarter operation, and a more impressive appearance. It is suitable for compacting various non-cohesive soils, such as gravel, crushed stone, sand-gravel mixtures, and various concrete materials, making it ideal for large-scale infrastructure projects.


Technical Specifications Table:

CategoryParameterSR34-G Specification
Performance ParametersOperating Weight34,000 kg

Centrifugal Force700 / 490 kN

Vibration Frequency26 / 31 Hz

Gradeability50 %
EngineModelWP13

Rated Power / Speed276 kW / 2100 rpm
DimensionsOverall Dimensions (LxWxH)7550 × 2750 × 3495 mm
Travel PerformanceForward Speed0-10 km/h

Reverse Speed0-10 km/h
Chassis SystemWheelbase3600 mm
Tank CapacityFuel Tank600 L
Working DeviceDrum Width2400 mm
