| Parameter Name | Specification |
|---|---|
| Operating Weight | 22000 kg |
| Power Battery Energy | 301.6 kW·h |
| Compaction Width | 2140 mm |
Contact Us:xuefei2421@gmail.com

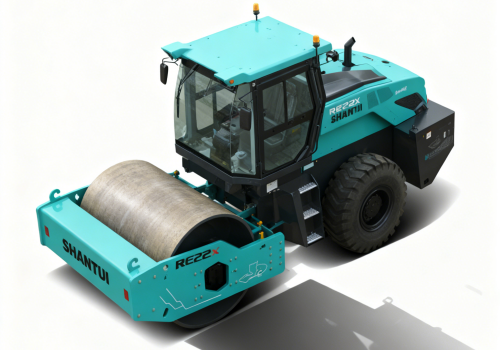

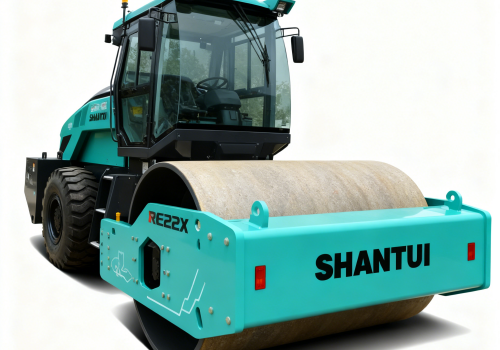

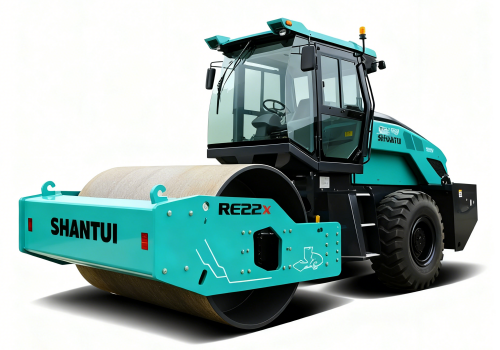

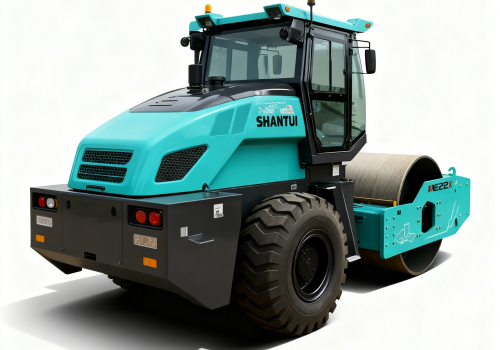

Expert Evaluation: The RE22-X is the latest fully upgraded all-electric single-drum vibratory roller developed by Sinomach. It delivers higher working efficiency, superior economy, enhanced comfort, more convenient maintenance, smarter operation, and a more impressive appearance. It is suitable for compacting various non-cohesive soils, such as gravel, crushed stone, sand-gravel mixtures, and various concrete, making it the ideal equipment for large-scale foundation projects.
| Parameter Category | Parameter Name | Unit | RE22-X |
|---|---|---|---|
| Performance Parameters | Operating Mass | kg | 22000 |
| Centrifugal Force | kN | 410 / 300 | |
| Vibration Frequency | Hz | 28 / 32 | |
| Nominal Amplitude | mm | —— | |
| Ground Pressure | kPa | —— | |
| Gradeability | % | 40 | |
| Power & Energy | Power Battery Model | Weichai B21 | |
| On-board Energy | kW·h | 301.6 | |
| Dimensions | Overall Dimensions (L×W×H) | mm | 6799×2362×3495 |
| Travel Performance | Forward Speed | km/h | 0-9.5 |
| Reverse Speed | km/h | 0-9.5 | |
| Chassis System | Wheelbase | mm | 3445 |
| Working Device | Compaction Width | mm | 2140 |
