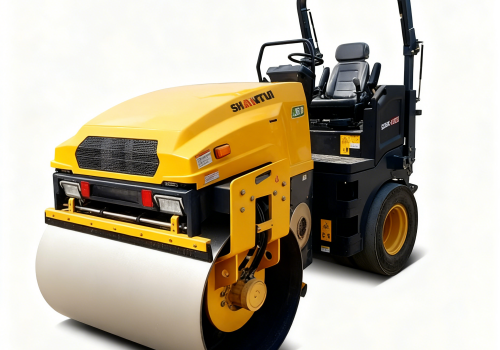

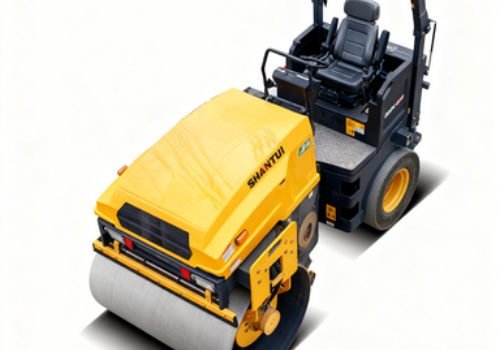

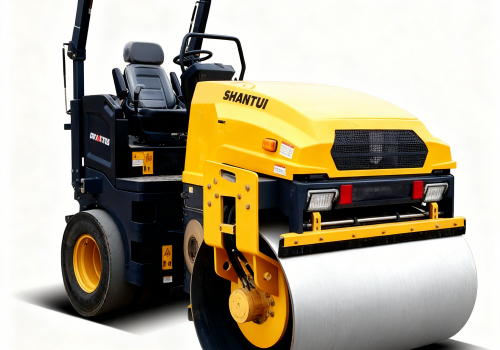

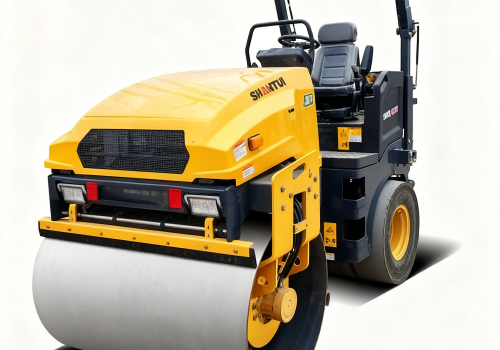

SRK05-G Combined Vibratory Roller

ParameterSpecification
Total Weight4300 kg
Engine Power36 kW / 2000 rpm, China IV Emission
Compaction Width1380 mm


Contact Us:xuefei2421@gmail.com

Expert Evaluation Summary:
The Shantui SRK05-G is a new-generation small roller developed on an all-new platform. It features comprehensive upgrades in overall appearance, maintenance convenience, and driving comfort. It is primarily designed for narrow worksites such as road maintenance, asphalt paving in municipal, rural, and residential areas, as well as compaction around manholes, green belts, and sidewalks. Its compact structure and high maneuverability make it an ideal compaction solution for municipal upkeep and construction projects.


Technical Specifications Table:

CategoryParameterSRK05-G Specification
Performance ParametersOperating Weight4300 kg

Centrifugal Force43 / 56 kN

Vibration Frequency53 / 60 Hz

Gradeability40 %
EngineModelV2607

Rated Power / Speed36 kW / 2000 rpm
DimensionsOverall Dimensions (LxWxH)2922 x 1500 x 2873 mm
Travel PerformanceForward Speed0-12 km/h

Reverse Speed0-12 km/h
Chassis SystemWheelbase1950 mm

Fuel Tank Capacity65 L
Working DeviceCompaction Width1380 mm
